Abstract

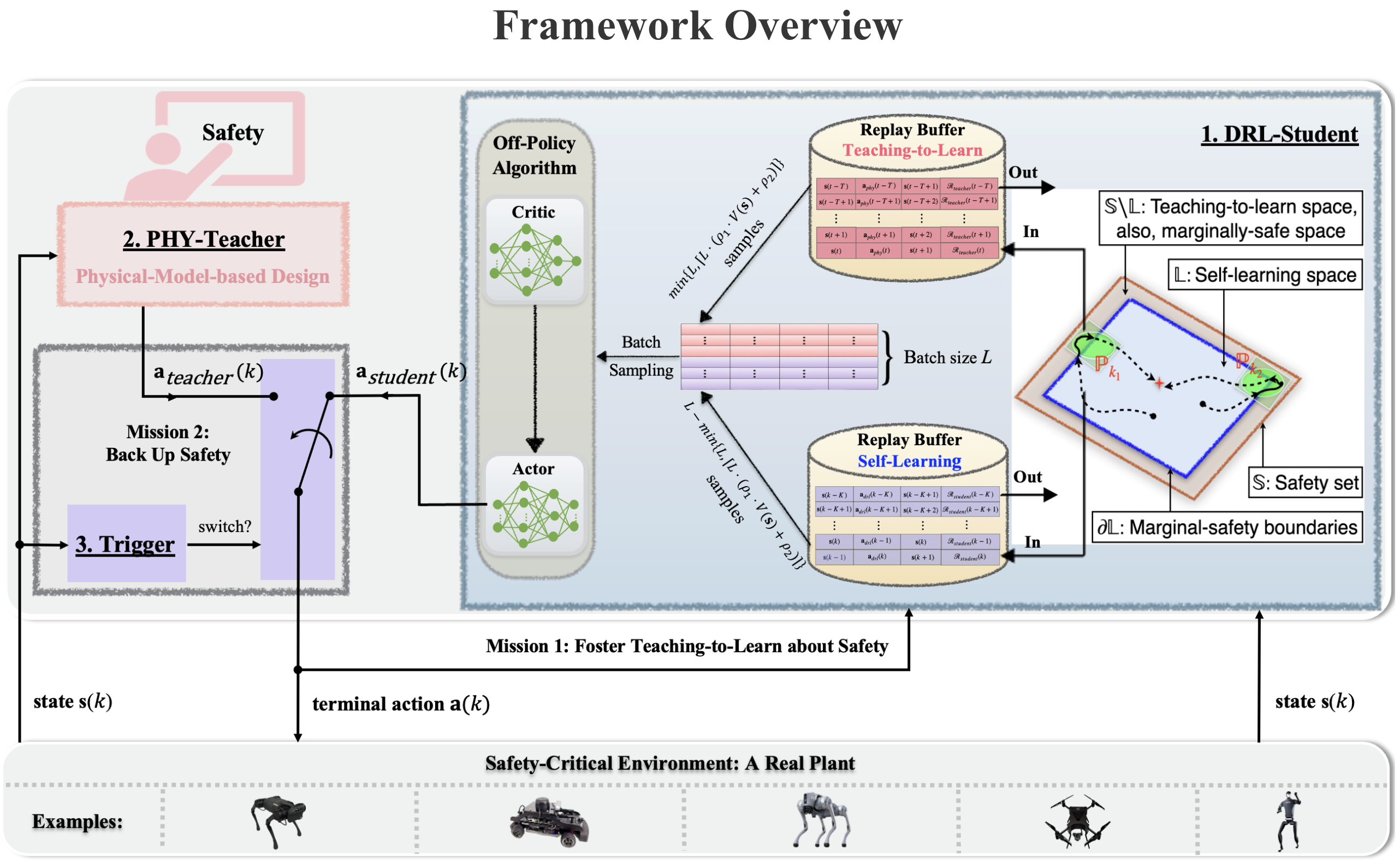

The Real-DRL framework is designed for safety-critical autonomous systems, enabling runtime learning of a deep reinforcement learning (DRL) agent to develop safe and high-performance action policies in real plants (i.e., real physical systems to be controlled), while prioritizing safety! The Real-DRL consists of three interactive components: a DRL-Student, a PHY-Teacher, and a Trigger. The DRL-Student is a DRL agent that innovates in the dual self-learning and teaching-to-learn paradigm and the real-time safety-informed batch sampling. On the other hand, PHY-Teacher is a physics-model-based design of action policies that focuses solely on safety-critical functions. PHY-Teacher is novel in its real-time patch for two key missions: i). fostering the teaching-to-learn paradigm for DRL-Student and ii). backing up the safety of real plants. The Trigger manages the interaction between the DRL-Student and the PHY-Teacher. Powered by the three interactive components, the Real-DRL can effectively address safety challenges that arise from the unknown unknowns and the Sim2Real gap. Additionally, Real-DRL notably features i). assured safety, ii). automatic hierarchy learning (i.e., safety-first learning and then high-performance learning), and iii). safety-informed batch sampling to address the learning experience imbalance caused by corner cases. Experiments with a real quadruped robot, a quadruped robot in NVIDIA Isaac Gym, and a cart-pole system, along with comparisons and ablation studies, demonstrate the Real-DRL's effectiveness and unique features.

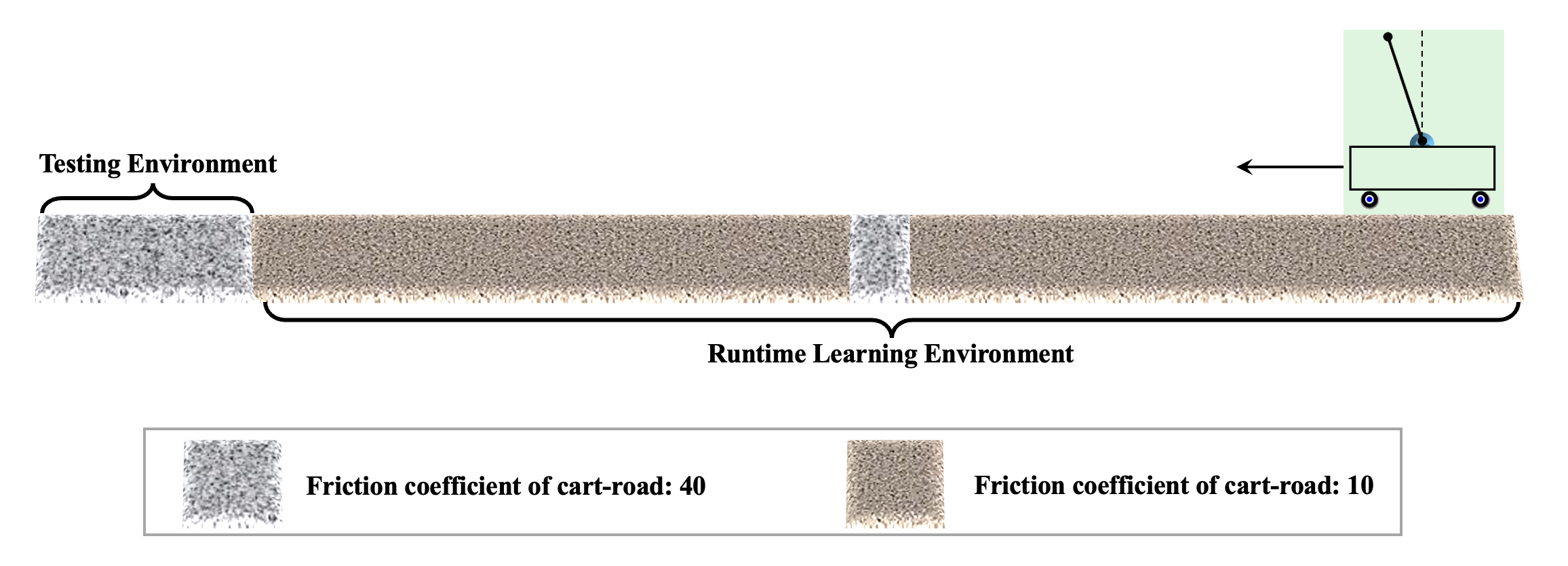

Experiment-I: Cart-Pole
Three Notable Features of Real-DRL:

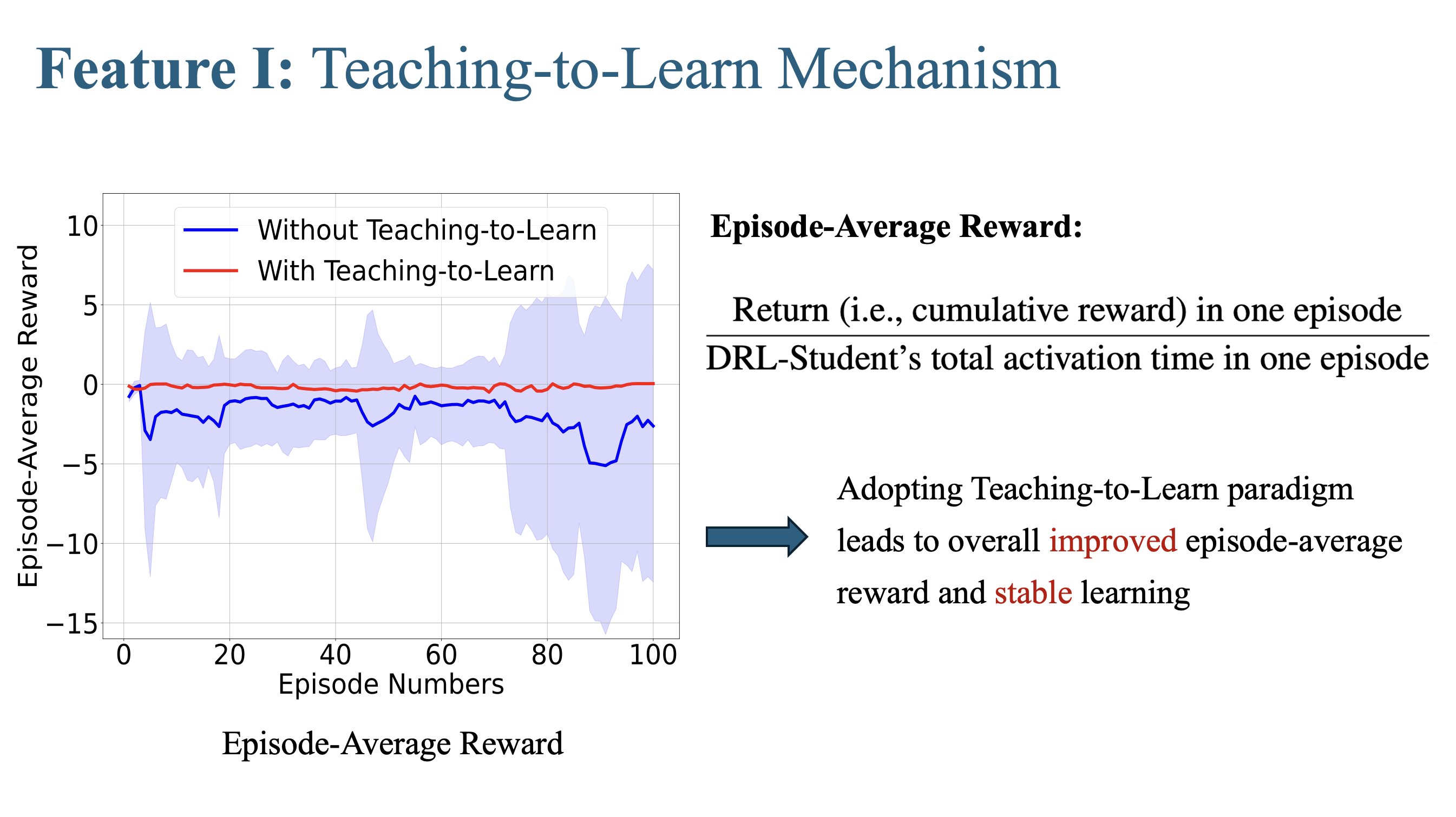

- Feature I – Teaching-to-Learn Mechanism

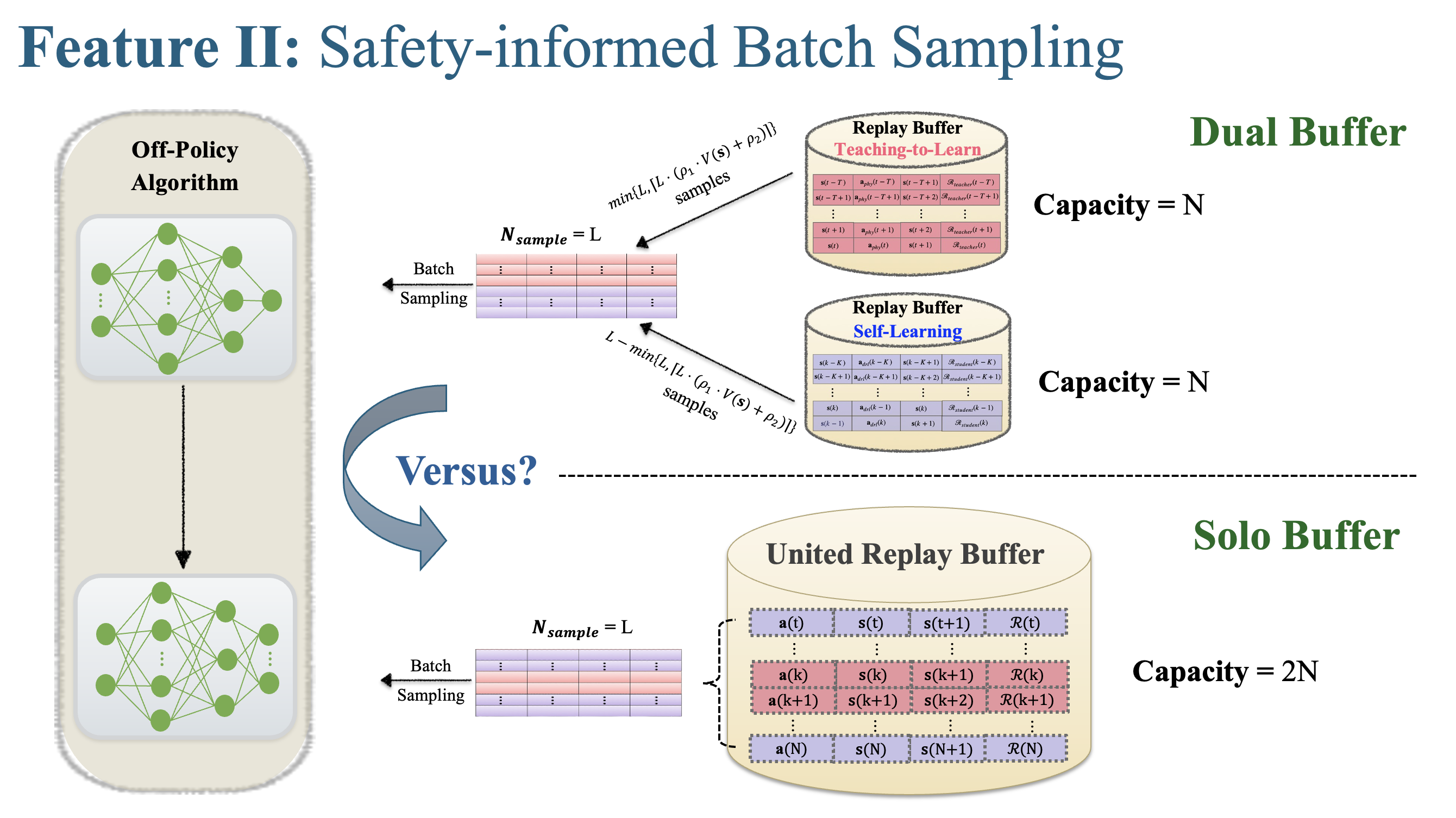

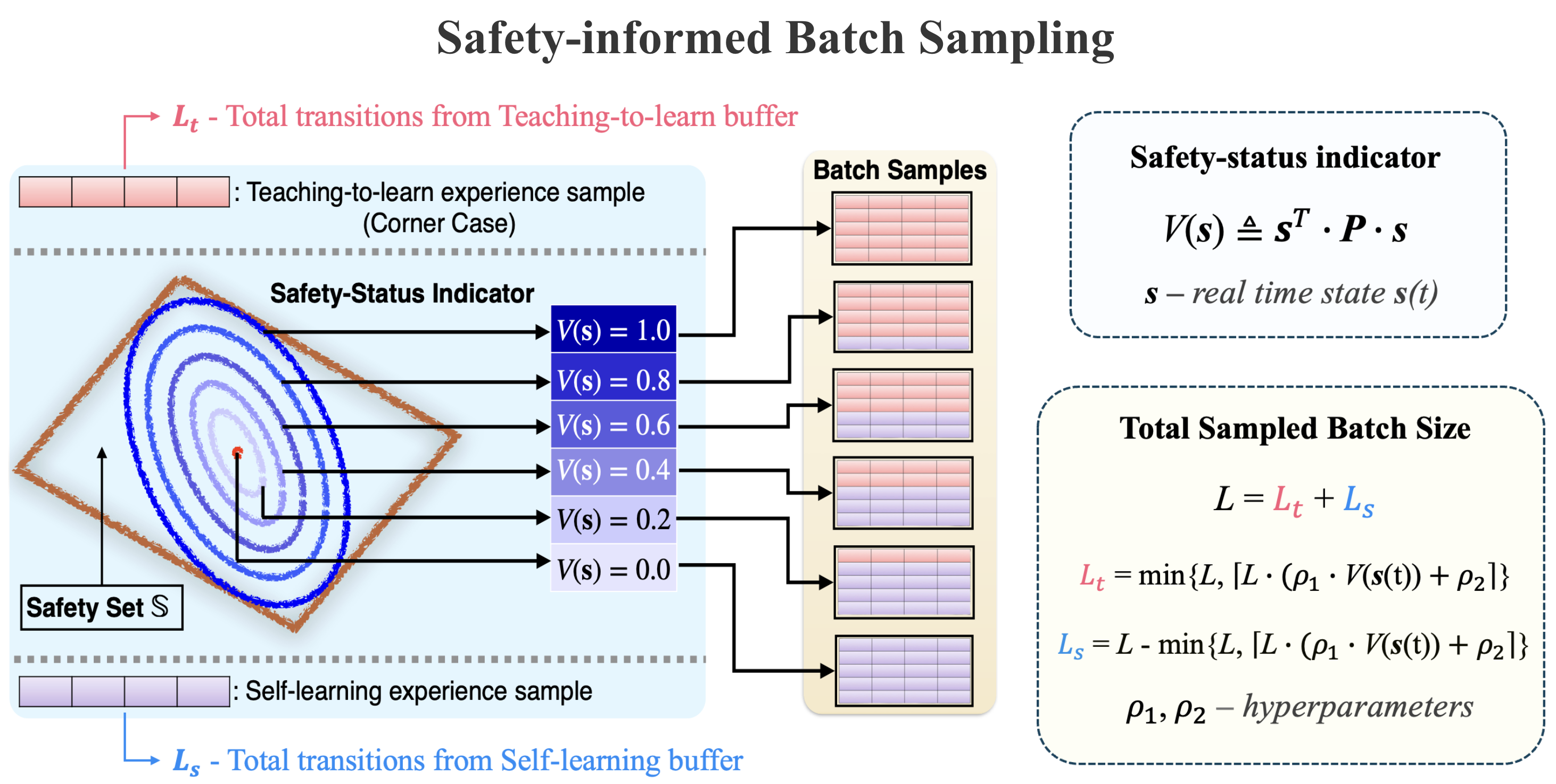

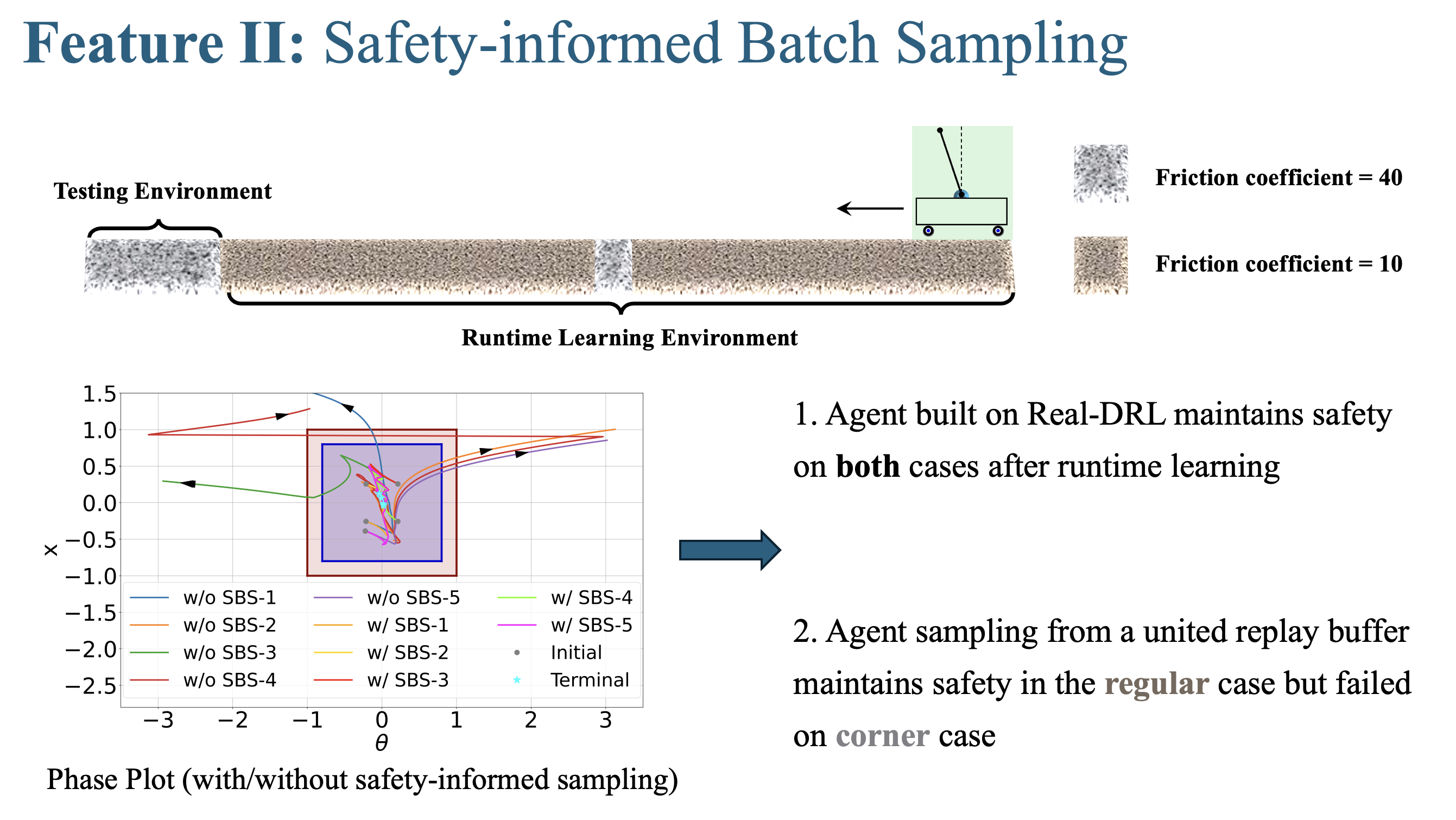

- Feature II – Safety-informed Batch Sampling

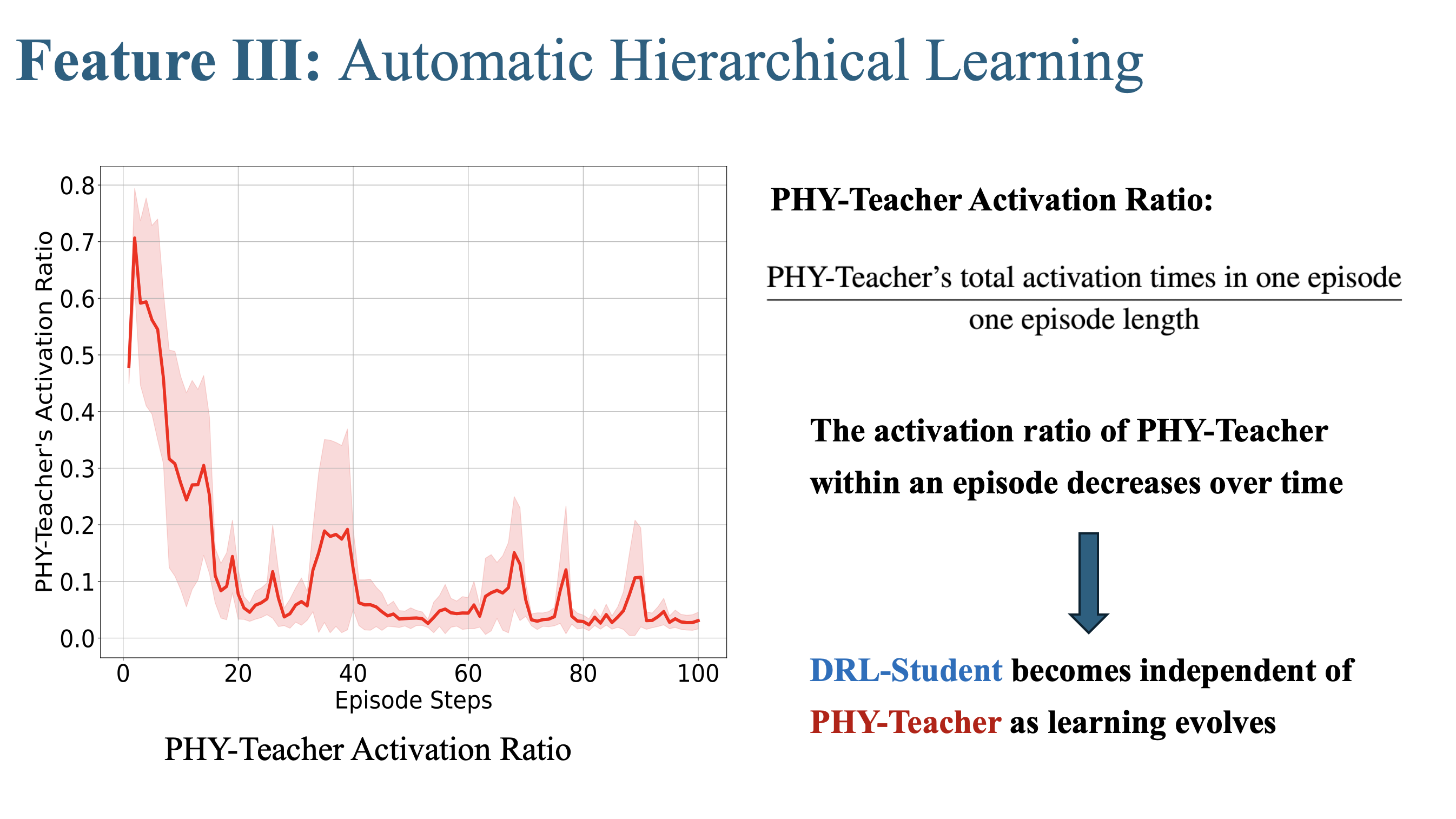

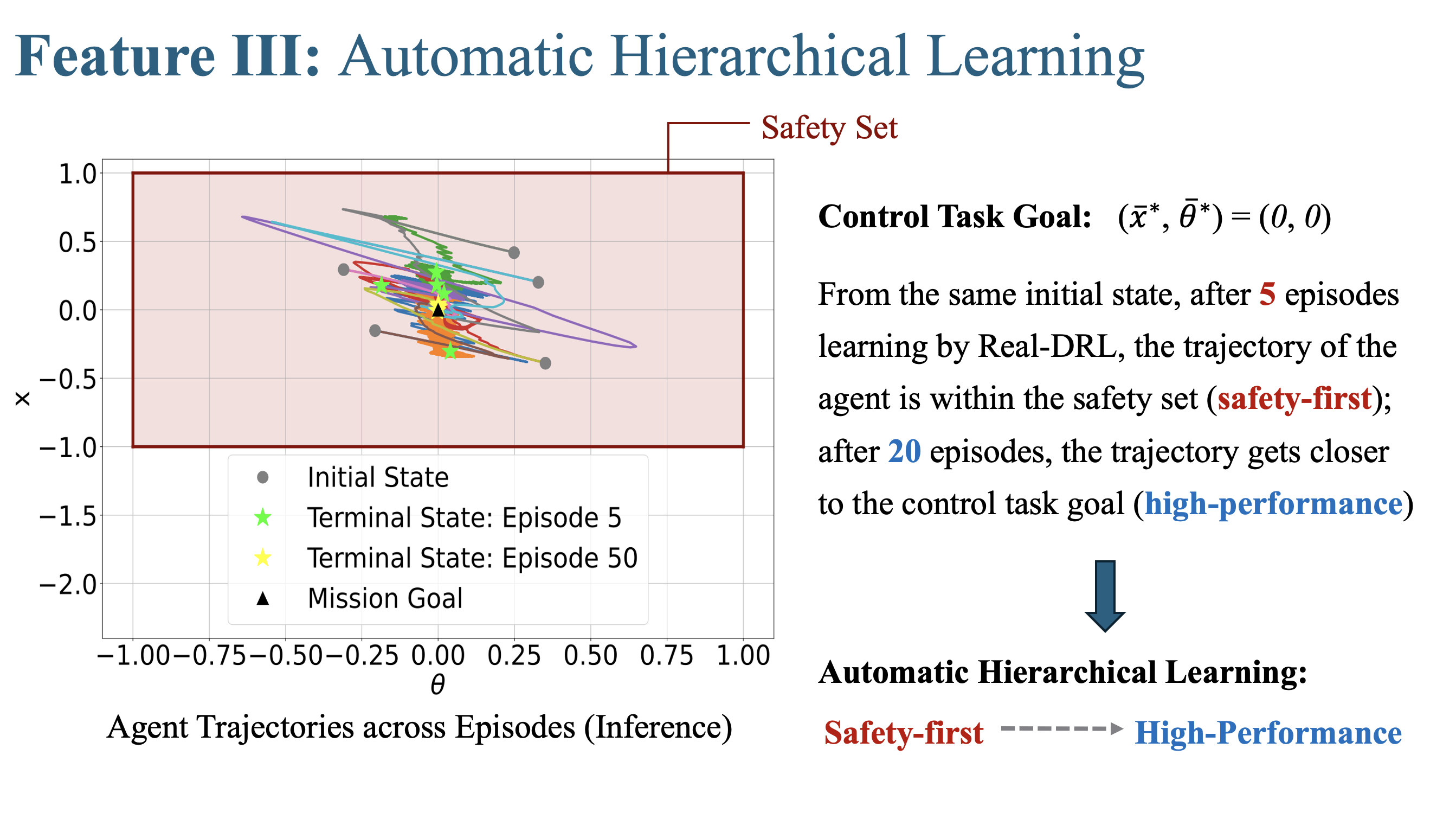

- Feature III – Automatic Hierarchy Learning

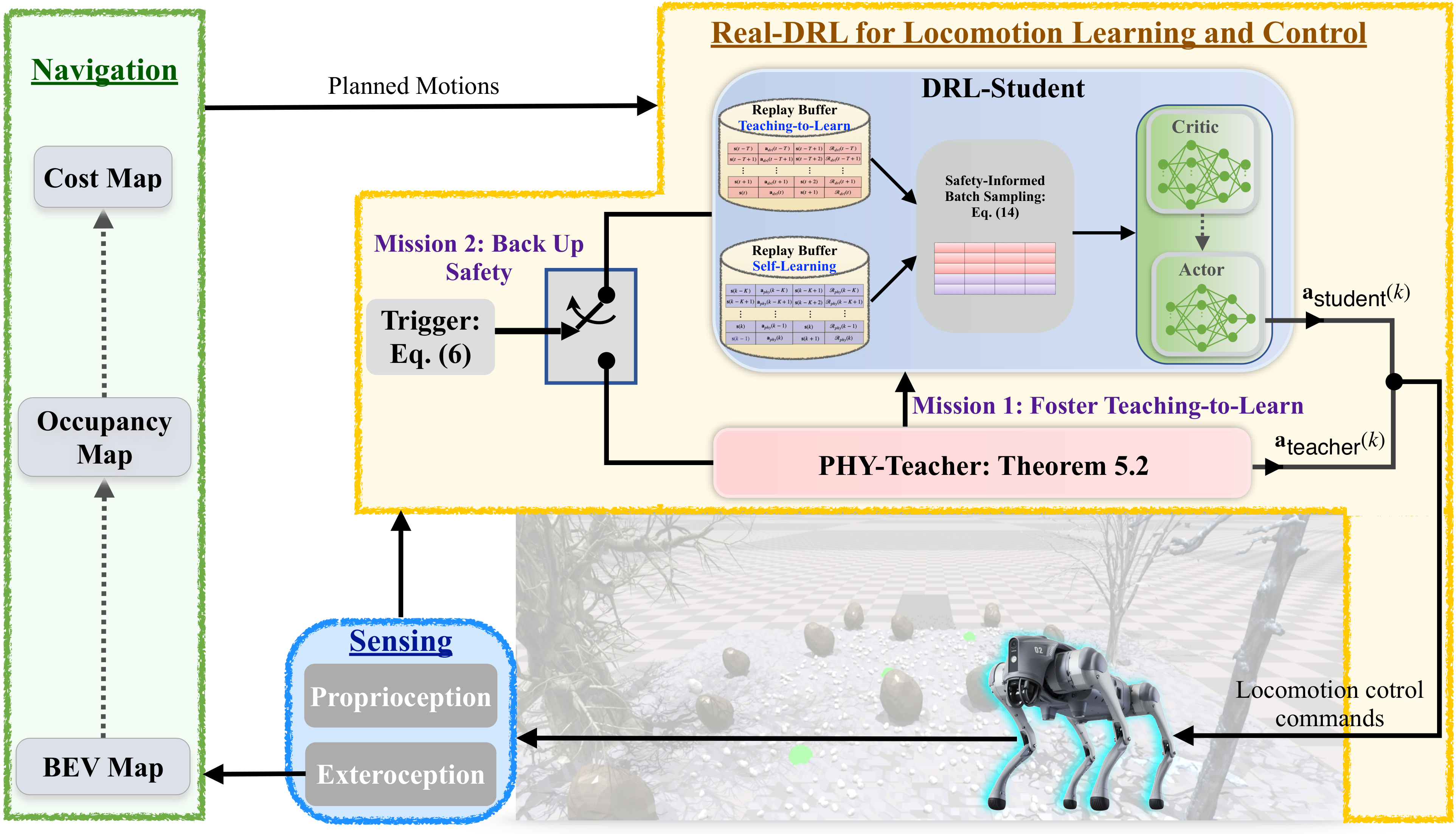

Experiment-II: Robot Go2 in Wild
Left: PHY-Teacher Robustness Comparison (Real-time vs Static Model) Right: Safety Guarantee of PHY-Teacher in Runtime Learning
Real-DRL vs. State-of-the-Art Safe DRL Approaches in Wild Environments
Experiment-III: Robot A1 in Real-World
Sim2Real Comparison (Real-DRL vs. Phy-DRL vs. Continual Phy-DRL)
Real-DRL's Fault Tolerance of Unknown Unknowns (left) and Safety-first Learning in Real-World Environment(right)
Poster
BibTeX
@inproceedings{
2025realdrl,
title={Real-{DRL}: Teach and Learn in Reality},
author={Yanbing Mao, Yihao Cai, Lui Sha},
booktitle={The Thirty-ninth Annual Conference on Neural Information Processing Systems},
year={2025},
url={https://openreview.net/forum?id=gXZlZAeqay}
}
